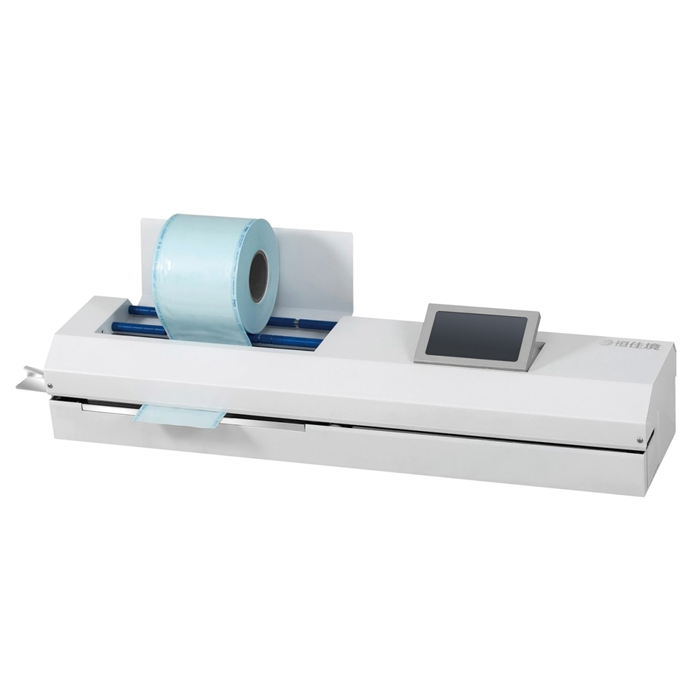

HCRseal-100A automatic cutting and sealing machine

Availability:
Product Description

Description

- Automatic reel feeding, cutting and printing content, all functions are integrated in one machine.Operator could set quantity and length of pouches to be cut. Multiple reels can be placed on the holder to improve efficency. Also you can only use its sealing function separately.


Features

- 7-inch touch panel to control how the pouches are produces and sealed.

- Real-time monitoring of working condition, pressure, pouch width prompt and fault alarm.

- Printing module pop-up from side, facilitating replacement of printing cartridge.

- Sealing records can be exported via USB port.

- Double-line 24-pin dot matrix printer makes the printing clear, and easy to read.

- 8 items of content, like manufacturing date, expiry date, operator etc. can be selected to print on the pouch. Items can also be disabled if you do not want them to be printed


Specifications

Items

Description

Size

1020*232*188 mm

Sealing speed

10m/min

Margin

0-35mm

Sealing temp.

Ambient temp.-220℃

Heating rate

180℃/40s

Seal width

12 mm

Reel maximum width

400 mm

Cutting speed

18±0.5 m/min

Control panel

7-inch

Rated power

500W
